Magnetic transducers

4-20 mA output

The converter integrated in the sensor head can be connected to 2, 3 or 4-wire systems, providing supply voltage to the current loop if necessary.

The reading resolution is 5 or 10 mm and the measurement distance can be requested so that it is established at the precise distance you want to measure.

The 4-20 mA loop relays are the ideal complement to obtain a tank measurement, display and control system of any type and size.
· They are used to obtain a continuous reading of liquid level.
· When the float rises or falls due to the action of the liquid, are activated or deactivated respectively a series of reed switches that generate an output proportional to the height of the level.
· A single model allows the connection of 2, 3 or 4 wire systems.

· Electrical connection: Connection housing. PBT
· Output range: 4..20 mA
· Distance between contacts: 10 mm. Optional 5 mm.
· Supply voltage: VAC, VDC
· Protection: IP67
CONFIGURATOR:
Power supply
Process connection
Float
The float must be smaller in diameter than the process connection.
Step between readings
Length (mm)
The final length is calculated based on different parameters and may be different from that requested.
Zone E (mm)
Separation between the process connection and the electrical connection.
Zone S (mm)
Distance without reading between the process connection and the highest position of the float.
Electrical connection

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· Process connection: Top screw. 2" G. SS AISI316 (1.4401)
· Length: 150..2500 mm
· Float: Cylindrical ø52x52 mm. SS AISI316 (1.4401)
· Temperature: -20..+100 ºC
· Pressure: 30 kg/cm²
CONFIGURATOR:
Power supply
Process connection
DN50
Float
The float must be smaller in diameter than the process connection.
Step between readings
Length (mm)
The final length is calculated based on different parameters and may be different from that requested.
Zone E (mm)
Separation between the process connection and the electrical connection.
Zone S (mm)
Distance without reading between the process connection and the highest position of the float.
Electrical connection

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995

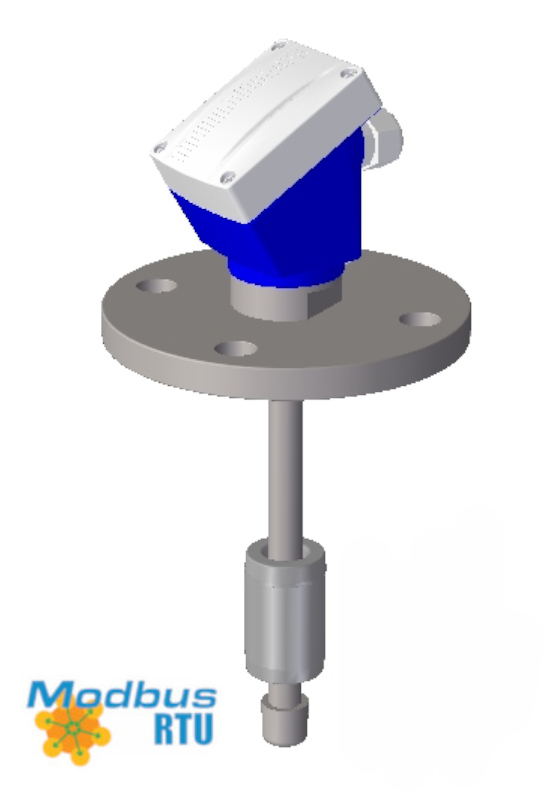

· Process connection: Flange DIN. DN 50. SS AISI316 (1.4401)
· Length: 150..2500 mm
· Float: Cylindrical ø52x52 mm. SS AISI316 (1.4401)
· Temperature: -20..+100 ºC
· Pressure: 30 kg/cm²
CONFIGURATOR:
Power supply
Process connection
DN100
Float
Ø95 INOX B
The float must be smaller in diameter than the process connection.
Step between readings
10 mm
Length (mm)
The final length is calculated based on different parameters and may be different from that requested.
Zone E (mm)
Separation between the process connection and the electrical connection.
Zone S (mm)
Distance without reading between the process connection and the highest position of the float.
Electrical connection

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· Process connection : Flange DIN. DN 100. SS AISI316 (1.4401)
· Length: 2500..5000 mm
· Float: Spherical ø95 mm. SS AISI316L (1.4404)
· Temperature: -20..+100 ºC
· Pressure: 25 kg/cm²
CONFIGURATOR:
Power supply
Process connection
Float
The float must be smaller in diameter than the process connection.
Step between readings
Length (mm)
The final length is calculated based on different parameters and may be different from that requested.
Zone E (mm)
Separation between the process connection and the electrical connection.
Zone S (mm)
Distance without reading between the process connection and the highest position of the float.
Electrical connection

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· Process connection: Flange Clamp. 2"1/2 G. SS AISI316 (1.4401)
· Length: 150..2500 mm
· Float: Cylindrical ø52x52 mm. SS AISI316 (1.4401)
· Temperature: -20..+100 ºC
· Pressure: 30 kg/cm²
CONFIGURATOR:
Power supply
Process connection
Float
Ø38x60 B
The float must be smaller in diameter than the process connection.
Step between readings
Length (mm)
The final length is calculated based on different parameters and may be different from that requested.
Zone E (mm)
Separation between the process connection and the electrical connection.
Zone S (mm)
Distance without reading between the process connection and the highest position of the float.
Electrical connection

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· Process connection: Top screw. 2" G. PP
· Length: 200..2500 mm
· Float: Cylindrical ø38x60 mm. PP
· Temperature: -10..+80 ºC
· Pressure: 3 kg/cm²
CONFIGURATOR:
Power supply
Process connection
Float
Ø38x60 B
The float must be smaller in diameter than the process connection.
Step between readings
Length (mm)
The final length is calculated based on different parameters and may be different from that requested.
Zone E (mm)
Separation between the process connection and the electrical connection.
Zone S (mm)
Distance without reading between the process connection and the highest position of the float.
Electrical connection

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· Process connection: Top screw. 2" G. PVC
· Length: 200..2500 mm
· Float: Cylindrical ø38x60 mm. PP
· Temperature: -10..+60 ºC
· Pressure: 3 kg/cm²
CONFIGURATOR:
Power supply
Process connection
Float
Ø38x60 PVDF B
The float must be smaller in diameter than the process connection.
Step between readings
Length (mm)
The final length is calculated based on different parameters and may be different from that requested.
Zone E (mm)
Separation between the process connection and the electrical connection.
Zone S (mm)
Distance without reading between the process connection and the highest position of the float.
Electrical connection

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· Process connection: Top screw. 1"1/4..2" G. PVDF
· Length: 100..2500 mm
· Float: Cylindrical ø38x60 mm. PVDF
· Temperature: -10..+100 ºC
· Pressure: 3 kg/cm²
CONFIGURATOR:
Power supply
Process connection
Float
Ø38x60 B
The float must be smaller in diameter than the process connection.
Step between readings
Length (mm)
The final length is calculated based on different parameters and may be different from that requested.
Zone E (mm)
Separation between the process connection and the electrical connection.
Zone S (mm)
Distance without reading between the process connection and the highest position of the float.
Electrical connection

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· Process connection: Flange DIN. DN 25..DN 100. PP
· Length: 200..2500 mm
· Float: Cylindrical ø38x60 mm. PP
· Temperature: -10..+80 ºC
· Pressure: 3 kg/cm²
CONFIGURATOR:
Power supply
Process connection
Float
Ø38x60 PVDF B
The float must be smaller in diameter than the process connection.
Step between readings
Length (mm)
The final length is calculated based on different parameters and may be different from that requested.
Zone E (mm)
Separation between the process connection and the electrical connection.
Zone S (mm)
Distance without reading between the process connection and the highest position of the float.
Electrical connection

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· Process connection: Flange DIN. DN 25..DN 100. PP
· Length: 100..2500 mm
· Float: Cylindrical ø38x60 mm. PVDF
· Temperature: -10..+100 ºC
· Pressure: 3 kg/cm²
CONFIGURATOR:
Power supply
Process connection
Float
Ø38x60 B
The float must be smaller in diameter than the process connection.
Step between readings
Length (mm)
The final length is calculated based on different parameters and may be different from that requested.
Zone E (mm)
Separation between the process connection and the electrical connection.
Zone S (mm)
Distance without reading between the process connection and the highest position of the float.
Electrical connection

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· Process connection: Flange DIN. DN 25..DN 100. PVC
· Length: 200..2500 mm
· Float: Cylindrical ø38x60 mm. PP
· Temperature: -10..+60 ºC
· Pressure: 3 kg/cm²
CONFIGURATOR:
Power supply
Process connection
1"G
Float
Ø29x50 PA B
The float must be smaller in diameter than the process connection.
Step between readings
Length (mm)
The final length is calculated based on different parameters and may be different from that requested.
Zone E (mm)
Separation between the process connection and the electrical connection.
Zone S (mm)
Distance without reading between the process connection and the highest position of the float.
Electrical connection

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· Process connection: Top screw. 1" G. PP
· Length: 200..2500 mm, tube SS AISI316
· Float: Cylindrical ø29x50 mm. PA
· Temperature: -10..+80 ºC
· Pressure: 3 kg/cm²
CONFIGURATOR:
Power supply
Process connection
1"G
Float
Ø29x50 PA B
The float must be smaller in diameter than the process connection.
Step between readings
Length (mm)
The final length is calculated based on different parameters and may be different from that requested.
Zone E (mm)
Separation between the process connection and the electrical connection.
Zone S (mm)
Distance without reading between the process connection and the highest position of the float.
Electrical connection

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· Process connection: Top screw. 1" G. PVC
· Length: 200..2500 mm, tube SS AISI316
· Float: Cylindrical ø29x50 mm. PA
· Temperature: -10..+60 ºC
· Pressure: 3 kg/cm²
