Pressure sensors

Surface mounting

· They are used to obtain a continuous reading of liquid level.
· Used in control of pumps, compressors, water systems, hydraulics, pneumatics, machinery, etc.
· They must be assembled in the bottom of the tank to withstand the maximum pressure of the liquid.

· Ceramic sensor of high precision and long-term stability
· Supply voltage: 10..35 VDC
CONFIGURATOR:
Output
4-20 mA
O-ring
Process connection
Units
Range
If you know the value in other units, use the [Pressure Converter] in the product file.

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· General application. Compact size
· Process connection: Thread 1/4", 1/2" BSP. SS 316L (1.4404)
· Electrical connection: Connector DIN43650
· Ranges: 0/1..0/250 bar
· Output: 4-20 mA
· Temperature: 0..+80 ºC
· Protection: IP65
CONFIGURATOR:
Output
4-20 mA
O-ring
Process connection
Units
Range
If you know the value in other units, use the [Pressure Converter] in the product file.

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· General application. Compact size
· Process connection: Thread 1/2" BSP. SS 316L (1.4404)
· Electrical connection: Connector M12
· Ranges: 0/1..0/250 bar
· Output: 4-20 mA
· Temperature: 0..+80 ºC
· Protection: IP65
CONFIGURATOR:
Output
4-20 mA
O-ring
Process connection
Units
Range
If you know the value in other units, use the [Pressure Converter] in the product file.
Cable (m)

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· General application. Compact size
· Process connection: Thread 1/2" BSP. SS 316L (1.4404)
· Electrical connection: Cable, 2 meters
· Ranges: 0/1..0/250 bar
· Output: 4-20
· Temperature: 0..+80 ºC
· Protection: IP65
CONFIGURATOR:
Output
O-ring
Process connection
Units
Range
If you know the value in other units, use the [Pressure Converter] in the product file.

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· General application. Compact size
· Process connection: Thread 1/2" BSP. SS 316L (1.4404)
· Electrical connection: Connector DIN43650
· Ranges: 0/1..0/250 bar
· Output: 4-20 mA or 0-10 VDC
· Temperature: 0..+80 ºC
· Protection: IP65
CONFIGURATOR:
Output
O-ring
Process connection
Units
Range
If you know the value in other units, use the [Pressure Converter] in the product file.

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· General application. Compact size
· Process connection: Thread 1/2" BSP. SS 316L (1.4404)
· Electrical connection: Connector M12
· Ranges: 0/1..0/250 bar
· Output: 4-20 mA o 0-10 VDC
· Temperature: 0..+80 ºC
· Protection: IP65
CONFIGURATOR:
Output
O-ring
Process connection
Units
Range
If you know the value in other units, use the [Pressure Converter] in the product file.
Cable (m)

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· General application. Compact size
· Process connection: Thread 1/2" BSP. SS 316L (1.4404)
· Electrical connection: Cable, 2 meters
· Ranges: 0/1..0/250 bar
· Output: 4-20 mA o 0-10 VDC
· Temperature: 0..+80 ºC
· Protection: IP65
CONFIGURATOR:
Output
O-ring
Process connection
1"G
Units
Range
If you know the value in other units, use the [Pressure Converter] in the product file.

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995

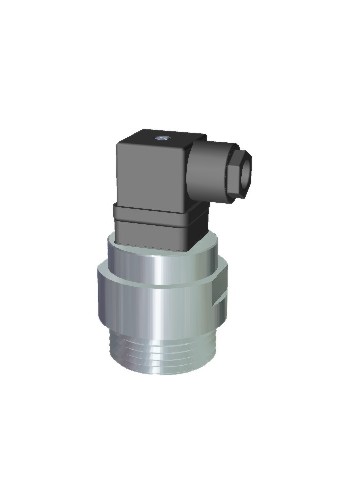

· Suitable for low pressures
· Outcropping membrane
· Process connection: Thread 1"1/4 BSP. SS AISI316 (1.4401)
· Electrical connection: Connector DIN43650
· Ranges: 0/50..0/200 mBar
· Output: 4-20 mA or 0..10 VDC
· Temperature: -5..+90 ºC
· Protection: IP65
CONFIGURATOR:
Output
O-ring
Process connection
1"G
Units
Range
If you know the value in other units, use the [Pressure Converter] in the product file.

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· Continuous measurement in liquids, even with impurities
· Outcropping membrane
· Process connection: Thread 1" BSP. SS AISI316 (1.4401)
· Electrical connection: Connector DIN 43650
· Ranges: 0/0,25..0/100 bar. Option 125 mBar (BP)
· Output: 4-20 mA or 0..10 VDC
· Temperature: -5..+90 ºC
· Protection: IP65
CONFIGURATOR:
Output
O-ring
Process connection
1"G
Units
Range
If you know the value in other units, use the [Pressure Converter] in the product file.

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· Continuous measurement in liquids, even with impurities
· Outcropping membrane
· Process connection: Thread 1" BSP. SS AISI316 (1.4401)
· Electrical connection: Connector M12
· Ranges: 0/0,25..0/100 bar. Option 125 mBar (BP)
· Output: 4-20 mA or 0..10 VDC
· Temperature: -5..+90 ºC
· Protection: IP65
CONFIGURATOR:
Output
O-ring
Process connection
1"G
Units
Range
If you know the value in other units, use the [Pressure Converter] in the product file.
Cable (m)

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· Continuous measurement in liquids, even with impurities
· Outcropping membrane
· Process connection: Thread 1" BSP. SS AISI316 (1.4401)
· Electrical connection: Cable, 2 meters
· Ranges: 0/0,25..0/100 bar. Option 125 mBar (BP)
· Output: 4-20 mA or 0..10 VDC
· Temperature: -5..+90 ºC
· Protection: IP65
CONFIGURATOR:
Output
O-ring
Process connection
1"1/4G
Units
Range
If you know the value in other units, use the [Pressure Converter] in the product file.

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· Continuous measurement of pressure in aggressive liquids
· Outcropping membrane
· Process connection: Thread 1"1/4 BSP. PTFE
· Electrical connection: Connector DIN 43650
· Ranges: 0/0,25..0/10 bar
· Output: 4-20 mA
· Temperature: -5..+70 ºC
· Protection: IP65
CONFIGURATOR:
Output
O-ring
Process connection
1"G
Units
Range
If you know the value in other units, use the [Pressure Converter] in the product file.

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· Continuous measurement of pressure in aggressive liquids
· Outcropping membrane
· Process connection: Thread 1"1/4. PP
· Electrical connection: Connector DIN 43650
· Ranges:0/0,25..0/10 bar. Option 125 mBar (BP)
· Output: 4-20 mA or 0..10 VDC
· Temperature: -5..+55 ºC
· Protection: IP65
CONFIGURATOR:
Output
O-ring
Process connection
1"G
Units
Range
If you know the value in other units, use the [Pressure Converter] in the product file.

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· Continuous measurement of pressure in aggressive liquids
· Outcropping membrane
· Process connection: Thread 1"1/4. PP
· Electrical connection: Connector M12
· Ranges:0/0,25..0/10 bar. Option 125 mBar (BP)
· Output: 4-20 mA or 0..10 VDC
· Temperature: -5..+55 ºC
· Protection: IP65
CONFIGURATOR:
Output
O-ring
Process connection
1"G
Units
Range
If you know the value in other units, use the [Pressure Converter] in the product file.
Cable (m)

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· Continuous measurement of pressure in aggressive liquids
· Outcropping membrane
· Process connection: Thread 1"1/4. PP
· Electrical connection: Cable, 2 meters
· Ranges:0/0,25..0/10 bar. Option 125 mBar (BP)
· Output: 4-20 mA or 0..10 VDC
· Temperature: -5..+55 ºC
· Protection: IP65
CONFIGURATOR:
Output
O-ring
Process connection
Range
If you know the value in other units, use the [Pressure Converter] in the product file.
Units

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· General application
· Process connection: Thread 1/4", 1/2" BSP or NPT. SS AISI316 (1.4401)
· Electrical connection: Connector DIN43650
· Ranges: 0/0,25..0/250 bar. Option 125 mBar (BP)
· Output: 4-20 mA or 0..10 VDC
· Temperature: 0..+90 ºC
· Protection: IP65
CONFIGURATOR:
Output
O-ring
Process connection
Units
Range
If you know the value in other units, use the [Pressure Converter] in the product file.

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· General application
· Process connection: Thread 1/4", 1/2" BSP or NPT. SS AISI316 (1.4401)
· Electrical connection: Connector M12
· Ranges: 0/0,25..0/250 bar. Option 125 mBar (BP)
· Output: 4-20 mA or 0..10 VDC
· Temperature: 0..+90 ºC
· Protection: IP65
CONFIGURATOR:
Output
O-ring
Process connection
Units
Range
If you know the value in other units, use the [Pressure Converter] in the product file.
Cable (m)

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· General application
· Process connection: Thread 1/4", 1/2" BSP or NPT. SS AISI316 (1.4401)
· Electrical connection: Cable, 2 meters
· Ranges: 0/0,25..0/250 bar. Option 125 mBar (BP)
· Output: 4-20 mA or 0..10 VDC
· Temperature: 0..+90 ºC
· Protection: IP65
CONFIGURATOR:
Output
O-ring
Process connection
1/2"G
Range
If you know the value in other units, use the [Pressure Converter] in the product file.
Units

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995

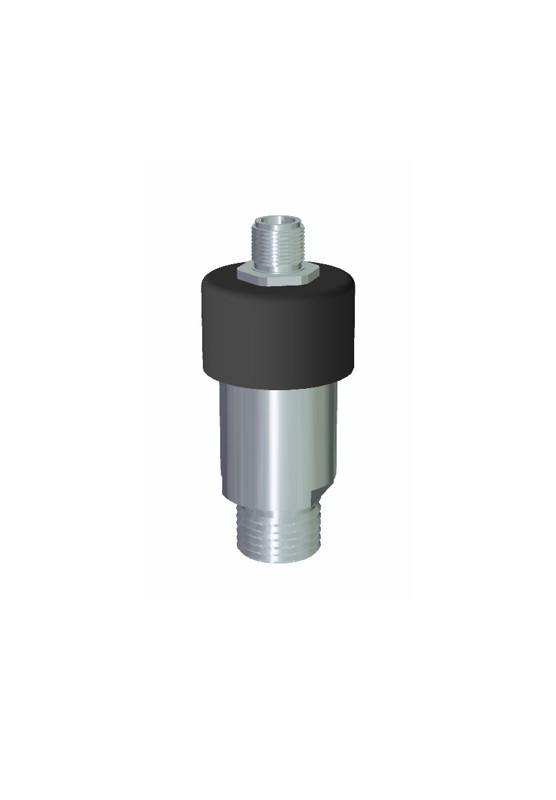

· General application
· Process connection: Thread 1/2" BSP. SS AISI316 (1.4401)
· Wide detection surface (Ø 9 mm)
· Electrical connection: Connector DIN43650
· Ranges: 0/0,25..0/60 bar. Option 125 mBar (BP)
· Output: 4-20 mA or 0..10 VDC
· Temperature: 0..+90 ºC
· Protection: IP65
CONFIGURATOR:
Output
O-ring
Process connection
1/2"G
Range
If you know the value in other units, use the [Pressure Converter] in the product file.
Units

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· Applicable in seawater, osmosis processes, etc.
· Process connection: Thread 1/2" BSP. SS AISI 904-L (1.4539)
· Electrical connection: Connector M12
· Wide detection surface (Ø9 mm)
· Ranges: 0/0,25..0/250 bar. Option 125 mBar (BP)
· Output: 4-20 mA or 0..10 VDC
· Temperature: -5..+90 ºC
· Protection: IP65
CONFIGURATOR:
Output
O-ring
Process connection
1/2"G
Range
If you know the value in other units, use the [Pressure Converter] in the product file.
Units
Cable (m)

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· Applicable in seawater, osmosis processes, etc.
· Process connection: Thread 1/2" BSP. SS AISI 904-L (1.4539)
· Wide detection surface (Ø 9 mm)
· Electrical connection: Connector M12
· Ranges: 0/0,25..0/60 bar. Option 125 mBar (BP)
· Output: 4-20 mA or 0..10 VDC
· Temperature: -5..+90 ºC
· Protection: IP65
CONFIGURATOR:
Output
O-ring
Process connection
1/2"G
Units
Range

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· Applicable in seawater, osmosis processes, etc.
· Process connection: Thread 1/2" BSP. SS AISI 904-L (1.4539)
· Electrical connection: Connector DIN43650
· Ranges: 0/0,25..0/250 bar. Option 125 mBar (BP)
· Output: 4-20 mA or 0..10 VDC
· Temperature: -5..+90 ºC
· Protection: IP65
CONFIGURATOR:
Output
O-ring
Process connection
1/2"G
Units
Range
If you know the value in other units, use the [Pressure Converter] in the product file.

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· Applicable in seawater, osmosis processes, etc.
· Process connection: Thread 1/2" BSP. SS AISI 904-L (1.4539)
· Electrical connection: Connector M12
· Ranges: 0/0,25..0/250 bar. Option 125 mBar (BP)
· Output: 4-20 mA or 0..10 VDC
· Temperature: -5..+90 ºC
· Protection: IP65
CONFIGURATOR:
Output
O-ring
Process connection
1/2"G
Range
If you know the value in other units, use the [Pressure Converter] in the product file.
Units
Cable (m)

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· Applicable in seawater, osmosis processes, etc.
· Process connection: Thread 1/2" BSP. SS AISI 904-L (1.4539)
· Electrical connection: Cable, 2 meters
· Ranges: 0/0,25..0/250 bar. Option 125 mBar (BP)
· Output: 4-20 mA or 0..10 VDC
· Temperature: -5..+90 ºC
· Protection: IP65
CONFIGURATOR:
Output
O-ring
Process connection
1/2"G
Units
Range
If you know the value in other units, use the [Pressure Converter] in the product file.
Cable (m)

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· For the control in pipe branches, distribution boxes, etc.
· Suitable in high humidity environments or outdoor
· Process connection: Thread 1/2" BSP. SS AISI316 (1.4401)
· Electrical connection: Cable with double sealing, atm tube and twisted prop
· Ranges: 0/0,25..0/250 bar
· Output: 4-20 mA or 0..10 VDC
· Temperature: -5..+90 ºC
· Protection: IP68

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995
