Liquids level · Output 0-1

Vous êtes dans: Sensors > Liquids level > Output 0-1 > Float switches

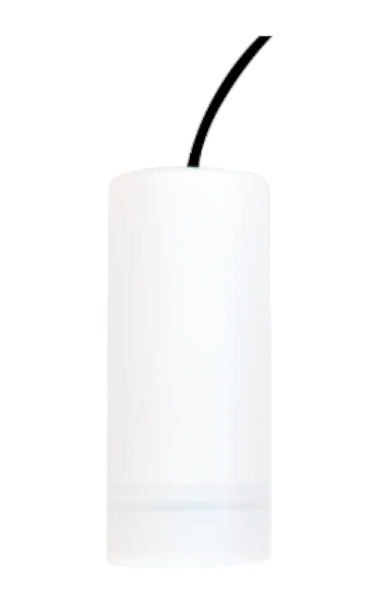

Float switches

· It can be used in wells, reservoirs, ponds and installations requiring liquid level control
· Very used to protect pumping systems
· They are easy to install and require no maintenance
CONFIGURATOR:
Cable (m)

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· Maximum or minimum control
· For clean waters
· Reduced dimensions: ø28x157 mm
· Manufactured in PE
· Micro-switch commute. 4 A / 230 VAC
· +60 ºC. 1 kg/cm². IP68
CONFIGURATOR:
Cable (m)

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· Maximum or minimum control
· For dirty or residual waters
· Manufactured in PP
· Microswitch SPDT 10 A / 250 VAC
· +60 ºC. 6 kg/cm². IP68
CONFIGURATOR:
Cable (m)

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· Maximum or minimum control
· For chemicals and liquids with temperature
· Manufactured in SS AISI316 (1.4401)
· Microswitch SPDT 5 A / 250 VAC
· +100ºC. IP68
CONFIGURATOR:
Cable (m)

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· Maximum and/or minimum control
· For dirty and residual waters without crusts growing
· Manufactured in PE
· Microswitch SPDT 10 A / 250 VAC
· +60 ºC. 5 kg/cm². IP68
CONFIGURATOR:
Cable (m)

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· Maximum or minimum control
· For clean waters and few shaked liquids
· Manufactured in PP
· Microswitch SPDT 16 A / 250 VAC
· +70 ºC. 3,5 bar. IP68
CONFIGURATOR:
Cable (m)

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· Maximum or minimum control
· For clean waters and few shaked liquids
· Manufactured in PP
· Microswitch SPDT 20 A / 250 VAC
· +85 ºC. 3,5 kg/cm². IP68
CONFIGURATOR:
Cable (m)

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· Maximum and/or minimum control
· For clean and residual waters without crusts growing
· Manufactured in Polystyrene antishock
· Microswitch SPDT 15 A / 250 VAC
· +60 ºC. 4 kg/cm². IP68
