Liquid level relays

Vous êtes dans: Level relays > Liquids > Conductive

Control by conductivity

Learn more about the characteristics of electronic relays.


· They are used to control conductive liquids in all types of reservoirs, wells, ponds, etc.
· The models differ by combinations of the following characteristics:
· Range of sensitivity.
· Modality of control.
· Quantity and type of output contacts.

· Should be connected to any type of conductive electrode.
· DISIBEINT is not responsible of the behavior of these relays when connected to sensors from other manufacturers.
CONFIGURATOR:
PNSADNSASNSA
Power supply
Range
10..100 Kohm
Power supply
Range
10..100 Kohm
Power supply
Range
10..100 Kohm

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


PNSA - DNSA - SNSA
· Maximum and/or minimum level control
· General application
· Sensitivity: 10..100Kohms
· Voltage/Current (probes): 24 VAC/4 mA
CONFIGURATOR:
PNFADNFA
Power supply
Range
10..100 Kohm
Power supply
Range
10..100 Kohm

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


PNFA - DNFA
· Combined control of phase failure and maximum and/or minimum level
· Sensitivity: 10..100Kohms
· Voltage/Current (probes): 24 VAC/4 mA
CONFIGURATOR:
PNEADNEA
Power supply
Range
Power supply
Range

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


PNEA - DNEA
· For high resistivity liquids: destlled waters, demineralized...
· Maximum and/or minimum level
· Two sensitivity ranges: 10..100 Kohms / 200 Kohms..4,7 Mohms
· Voltage/Current (probes): 24 VAC/4 mA
CONFIGURATOR:
PNDADNDA
Power supply
Range
10..100 Kohm
Power supply
Range
10..100 Kohm

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


PNDA - DNDA
· Automatic control for well and tank
· Sensitivity: 10..100Kohms
· Voltage/Current (probes): 24 VAC/4 mA
CONFIGURATOR:
PNGADNGA
Power supply
Range
10..100 Kohm
Power supply
Range
10..100 Kohm

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


PNGA - DNGA
· Double level control
· Two independent level controls
· Contacts NO
· Maximum and/or minimum level
· Sensitivity: 10..100Kohms
· Voltage/Current (probes): 24 VAC/4 mA
CONFIGURATOR:
PNHADNHA
Power supply
Range
10..100 Kohm
Power supply
Range
10..100 Kohm

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


PNHA - DNHA
· Double level control
· Two independent level controls
· Contacts NC
· Maximum and/or minimum level
· Sensitivity: 10..100Kohms
· Voltage/Current (probes): 24 VAC/4 mA
CONFIGURATOR:
Power supply
Range
10..100 Kohm

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· Two independent level controls
· Contacts NO/NC
· Maximum and/or minimum level
· Sensitivity: 10..100Kohms
· Voltage/Current (probes): 24 VAC/4 mA
CONFIGURATOR:
Power supply
Range
10..100 Kohm

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· Control of 3 independent levels, belonging to the same tank or not
· Several application possibilities
· Independent adjustments for each relay
· Function Max-Min or Set-Point
· Delay at level detection: 0..10s
· Sensitivity: 10..100Kohms
· Voltage/Current (probes): 5 VCA/4 mA

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· Three independent level controls
· Contacts NO/NC
· Maximum and/or minimum level
· Without housing. Directa assembly to DIN rail
· Sensitivity: 10..150 Kohms
· Voltage/Current (probes): 24 VAC/4 mA
CONFIGURATOR:
PNCAPNCBDNCADNCB
Power supply
Range
8..45 Kohm
Power supply
Range
8..45 Kohm
Power supply
Range
8..45 Kohm
Power supply
Range
8..45 Kohm

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995

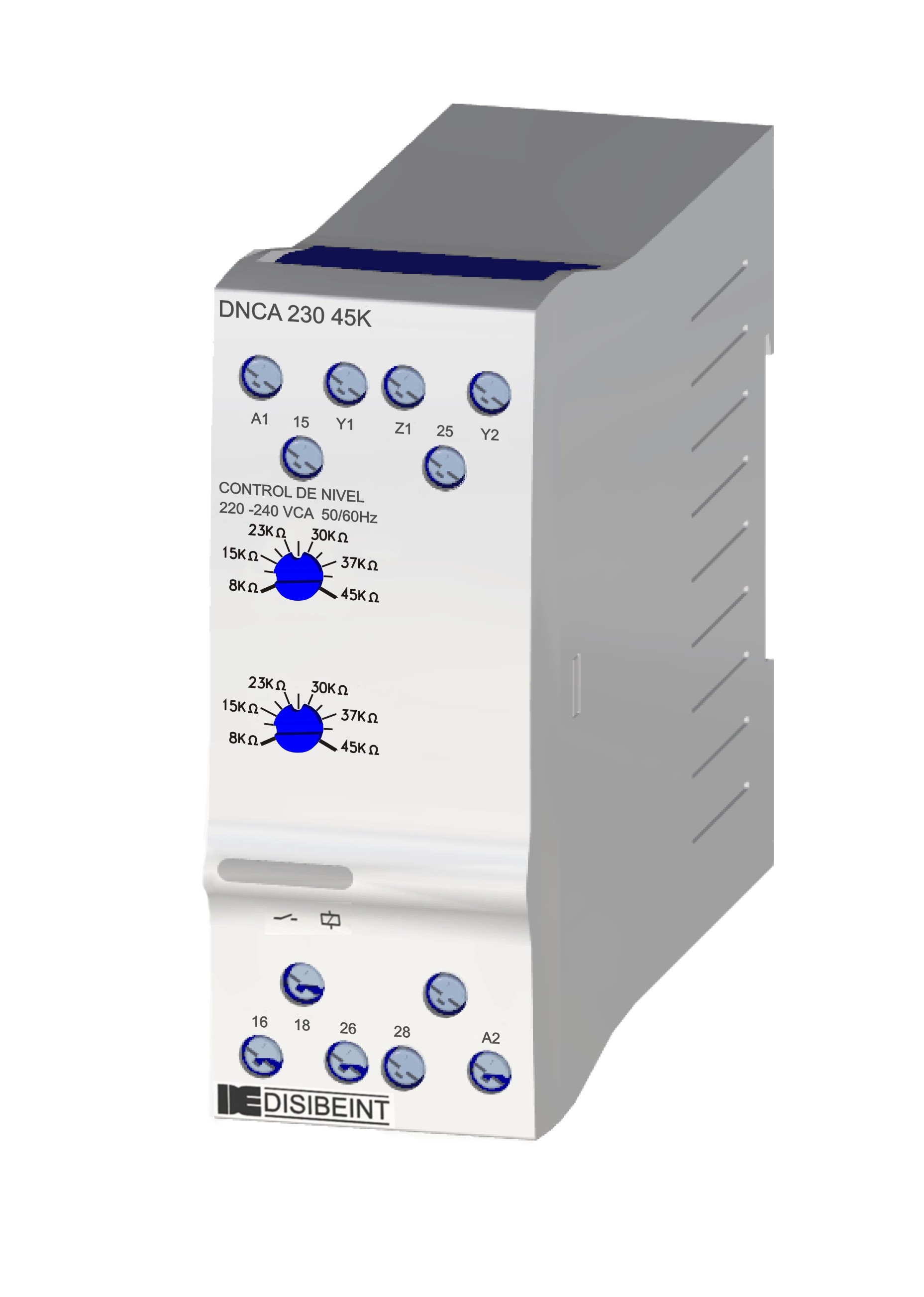

PNCA - PNCB - DNCA - DNCB
· Supply voltage DC or AC
· Double relay contact
· Maximum and/or minimum level control
· Sensitivity: 8..45 Kohms
· Voltage/Current (probes): 6,2 VCA/3,2 mA
